Air Pressure
Min. 5 bar
Elec. connection
400V / 3 phase / 50Hz
Capacity
70 -100 wheels/hour
diameter Range
20" - 29" inch
Weight
1140 kg
Air Usage
80 L/min
Elec. Usage
1.2 kW
Dimensions
(L x W x H): 1700 x 2450 x 1500 mm
Rim range
Width: 50mm / Height: 35mm
Sound level
<70 dB
features

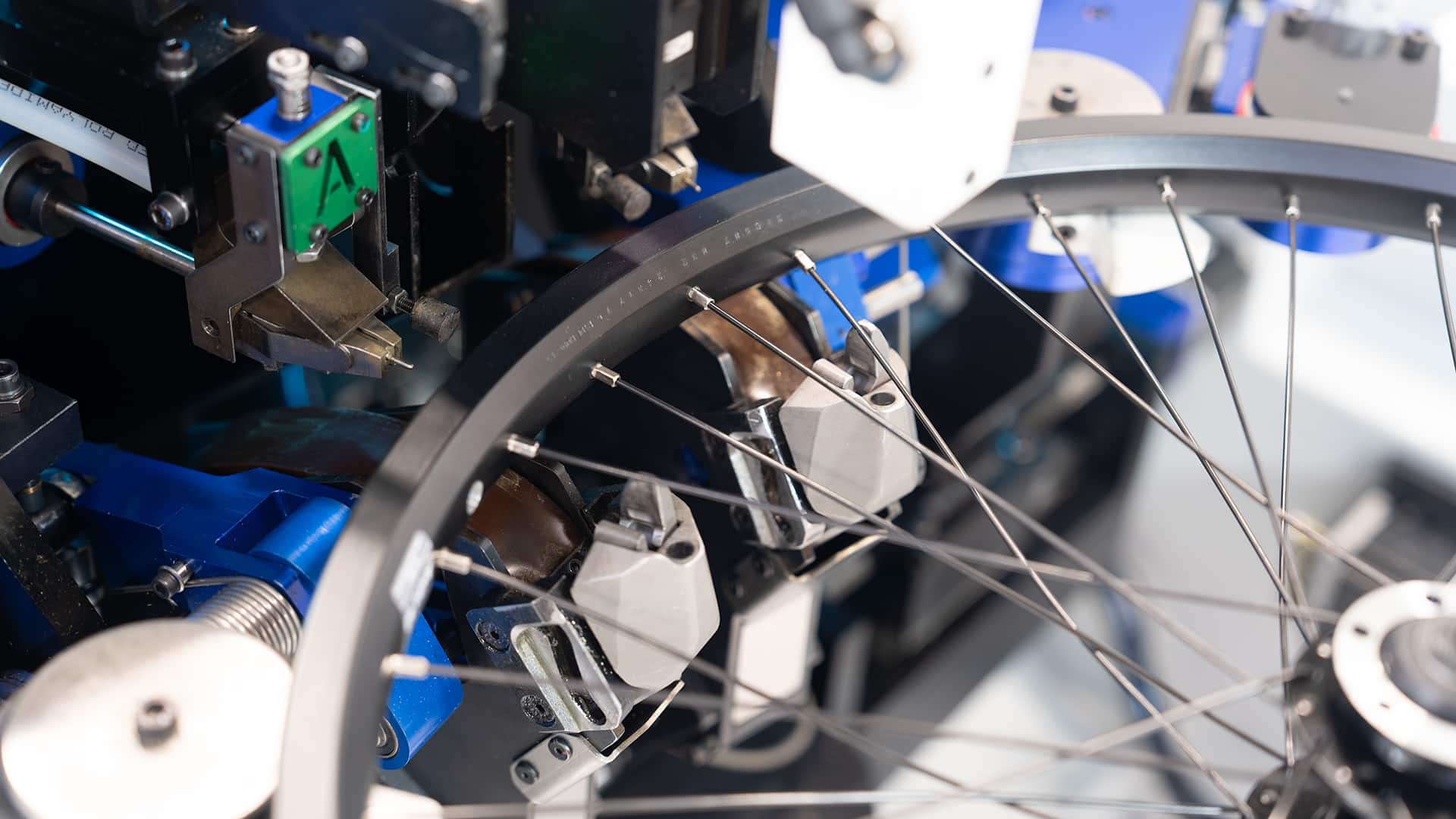

2 guided grippers - double speed
With two spoke guiders working simultaneously, takt time can theoreticaly be cut in half, with lacing speeds recorded under 30 seconds. The setup is ergonomic and beginner-friendly, while anti-scratch grippers keep spokes from touching the rim for a flawless finish.

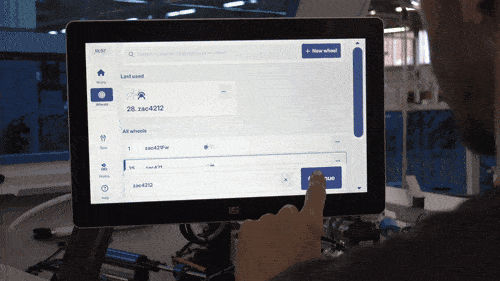

User friendly interface
Our new user-friendly interface lets you program and save wheels in minutes. Easily select, tweak, and adjust on the go, including seamless back-and-forth navigation between holes to quickly correct mistakes. Automatic guidance / error tracing keep everything running smoothly.

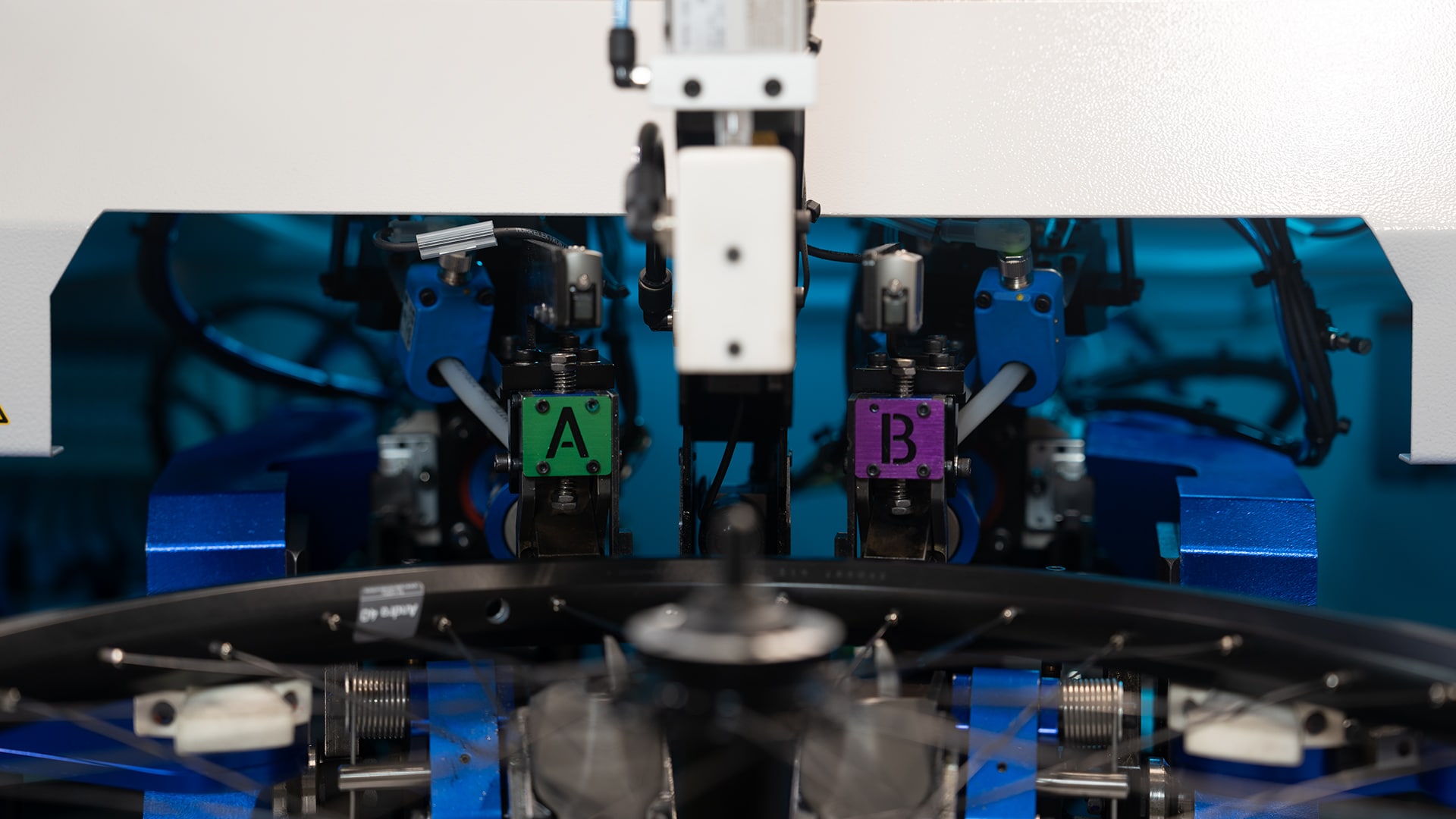

Adjustable - wheel flexibility
Two adjustable mechanical arms offer flexible positioning along the X-axis to handle multiple lacing patterns with ease. Combined with the automatic nipple feeder, the process stays smooth and adaptable for most wheel types.
The fastest wheel lacing solution on the market
Experience precision wheel lacing like never before with the CT-Twin Lacer. This advanced machine delivers complete wheel lacing with an average of 35-42 seconds, setting a new industry standard for speed and efficiency. We have recorded operators even lacing below 30 seconds.
The CT-Twin Lacer features dual spoke guides that automatically clamp and direct spokes to their nipples, making professional-quality lacing accessible to beginners while maintaining the precision that experienced operators demand. Its ergonomic design reduces operator fatigue and ensures consistent comfort throughout extended production runs.
Smart Automation Features
- Dual-arm operation with independent spoke guidance systems
- 4 nipple containers providing continuous automatic feeding (2 per arm)
- Intuitive user interface for effortless adjustment and workflow monitoring
- 35-42 second cycle time depending on operator experience
The CT-Twin Lacer combines cutting-edge automation with user-friendly operation, delivering unmatched productivity without compromising on quality. Whether you’re scaling up production or looking to streamline your current process, this machine sets the new benchmark for wheel lacing technology.
- 2 guided spoke grippers
- Database for 1000 diff erent wheels pre-sets
- Touch screen user friendly interface
- Quick change-over 20″ – 29″ inch
- Lacing & tightening in one
- Moveable screwdrivers
- Self diagnostic
- lace up to 50mm width and 35mm height rims
- Automatic wheel scanning system (easy to learn in)
- eBike wheel compatible
- Industry 4.0 ready with integrated data management
- foot pedal operating system
- Adjustable nipple containers
- We accept request to make sure your wheels can fit.
